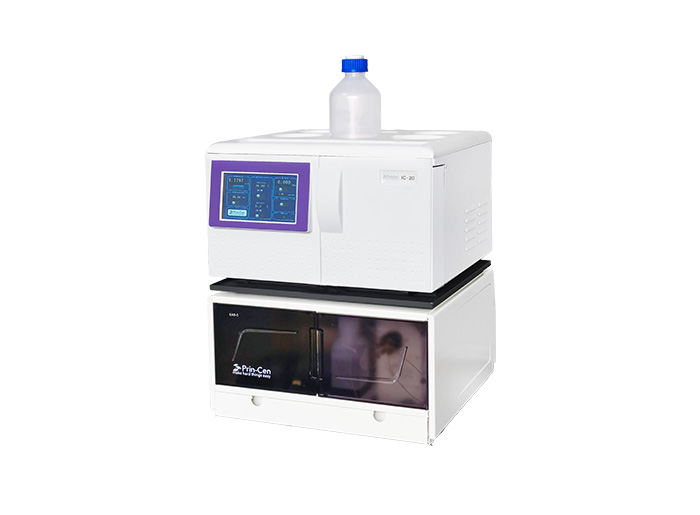

IC-20 Ion Chromatograph

Product Description

The IC-20 ion chromatography utilizes Dual-motor independent driving series-connected pump, ultra wide range digital conductivity detector, and high-performance, high-throughput auto-sampler. It also provide suppressor additional external water mode, expanding the application capabilities of the ion chromatograph. The instrument is equipped with a pump cleaning function for routine maintenance, providing long working life.

Product Advantages

  • Dual-motor independent driving technology, series-connected dual-plunger pump, provide high pressure eluent with low pulse. All-PEEK flow path
    is compatible with 0-14 pH eluent. Built-in plunger rod cleaning function.

  • Digital conductivity detector with a measurement range of 0-100,000 μS/cm, automatic full-range conversion without the need for gear setting or manual shifting.

  • Resolution of conductivity detector 0.001 nS/cm.

  • Conductivity Cell Equipped with temperature control and temperature compensation functions, with a temperature measurement accuracy of 0.001.

  • The conductivity cell can withstand pressures of 10 MPa or higher.

  • Suppressor additional external water  mode can be enabled.


  • 截屏2023-08-31 16.52.34.png


Model

IC-20 Ion Chromatograph

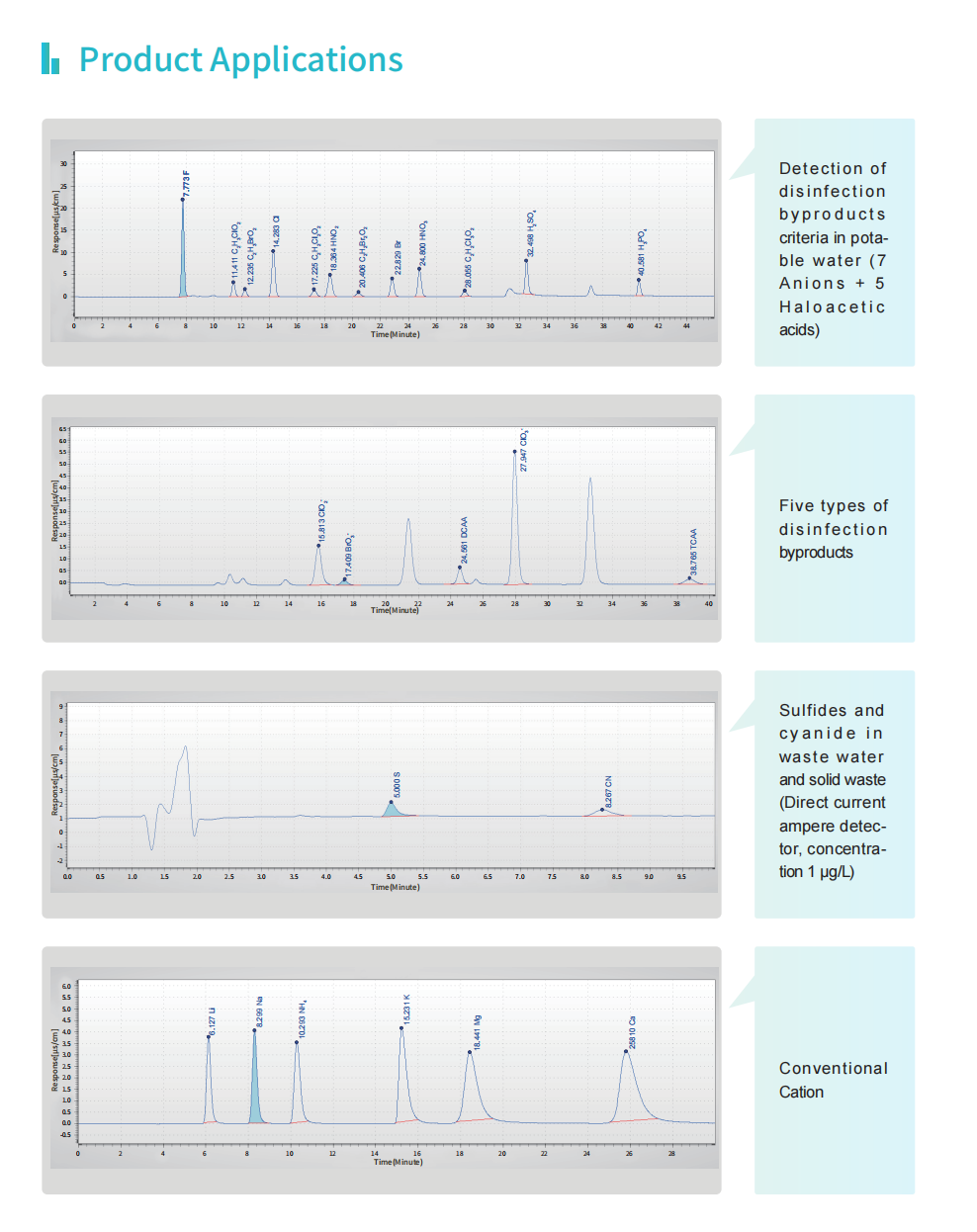

Application Fields:

Marine, environmental, food, pesticide residues, semiconductor, geological, pharmaceutical impurities, biological, cosmetics, drinking water, and other fields.

Detection Limit:

ppb Level

Flow Rate Range:

0.01-5.00 mL/min (standard), 0.01-10.00 mL/min (optional, in 0.01 mL/min increments)

Flow Rate Accuracy:

0.2%

Pressure Range:

0~5000psi35MPa

Pressure Pulsation:

0.1%

Temperature Range:

Room temperature +5°C to 80°C

Temperature Stability:

±0.1℃

Software Function:

Available in both Chinese and English versions, with functions such as simultaneous control, data acquisition/storage/processing. It supports chromatographic peak integration setting, qualitative analysis by retention time , peak area and concentration calculations, half-peak width calculation, and signal-to-noise ratio calculation

Power Supply:

220V ±10%, 50Hz

Instrument Dimensions:

Desktop design, modular assembly, 456mm * 420mm * 522mm (LWH)

Instrument Weight:

43kg
