IC-10 Ion Chromatograph

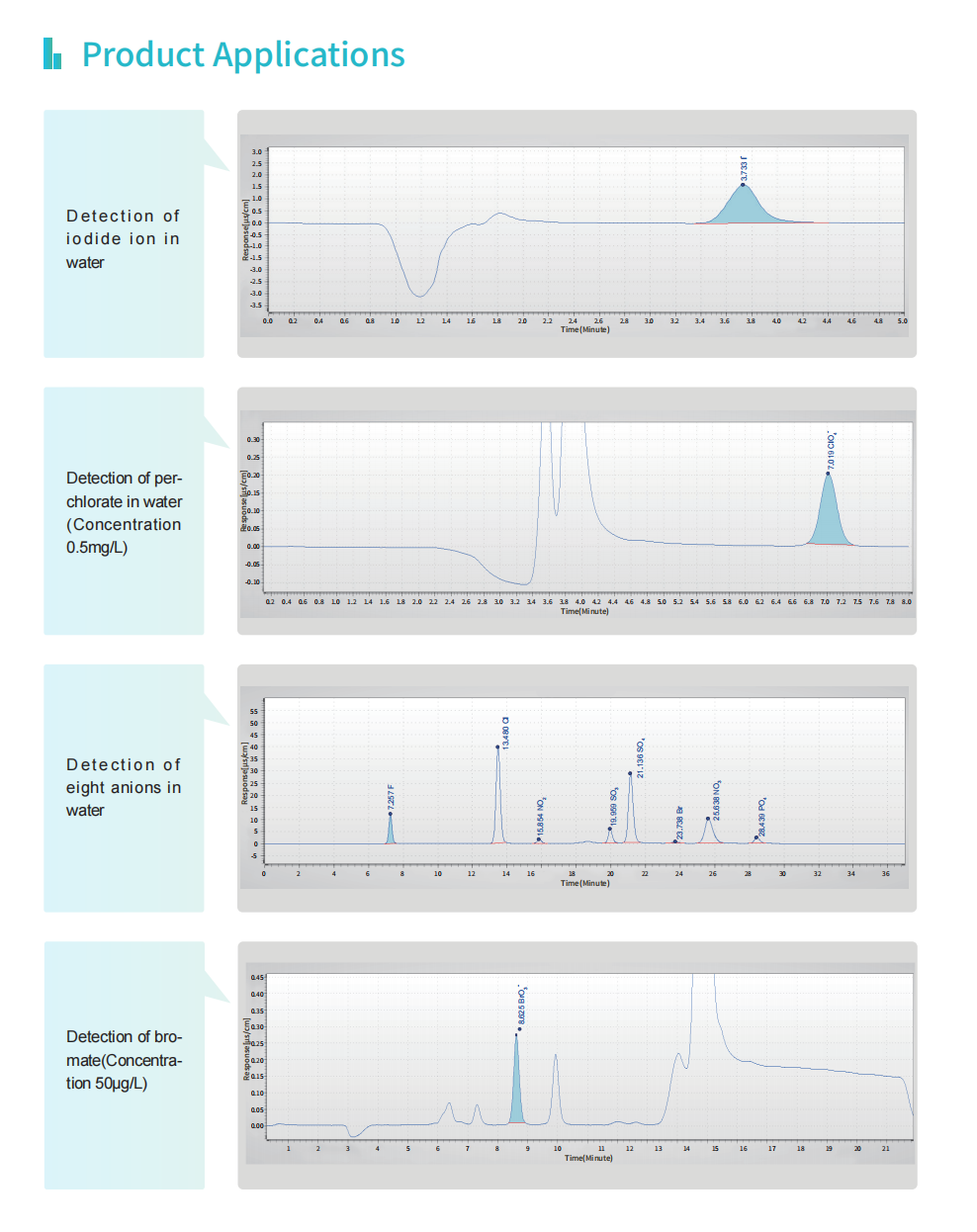

The high-end ion chromatography pump combined with a digital conductivity detector provides high sensitivity and stability. With dedicated chromatographic columns and unique eluent conditions, it achieves high separation efficiency and fast analysis. The high-performance and high-throughput autosampler reduce the labor cost greatly, enabling overall efficient analysis. It can satisfy the analysis requirements in fields such as electronics, environmental, food, geological, cosmetics, and drinking water.
Product Advantages
◆ Dual-motor independent driving technology, series-connected dual-plunger pump, provide high pressure eluent with low pulse. All-PEEK flow path is compatible with 0-14 pH eluent.
◆ Digital conductivity detector with a measurement range of 0-20000 μS/cm, automatic full-range conversion without the need for gear setting or manual shifting.
◆ Resolution of conductivity detector 0.001 nS/cm.
◆ Conductivity Cell Equipped with temperature control and temperature compensation functions, with a temperature measurement accuracy of 0.001°C.
◆ The pressure resistance of the conductivity cell can reach 10 MPa or higher
Product Parameter
Model | IC-10 |
Application Fields: | Electronics, Environmental, Food, Geological, Cosmetics, Drinking water, and other fields. |
Detection Limit: | ppb level |
Flow Rate Range: | 0.01-5.00 mL/min (increment of 0.01 mL/min) |
Flow Rate Accuracy: | ＜0.2% |
Pressure Range: | 0~5000psi（35MPa） |
Pressure Pulsation: | ＜0.1% |
Temperature Range: | Room temperature +5°C to 80°C |
Temperature Stability: | ±0.1℃ |
Software Function: | Available in both Chinese and English versions, with functions such as simultaneous control, data acquisition/storage/processing. It supports chromatographic peak integration setting, qualitative analysis by retention time , peak area and concentration calculations, half-peak width calculation, and signal-to-noise ratio calculation. |
Power Supply: | 220V±10%，50HZ |
Instrument Dimensions: | Desktop design, modular assembly, 456mm * 420mm * 522mm (LWH) |
Instrument Weight: | 43kg |
